Hydraulic Couplers

Hydraulic couplers provide a quick, positive leak proof connection. Hydraulic couplers are designed to grease standard grease fittings. Click SAE numbers for information on each hydraulic coupler.

SAE Number

Type

Thread

Pressure

Buy Now!

SAE-4JC1

Narrow

1/8" NPTF(f)

10,000

SAE-4JC2

Narrow / No Check Valve

1/8" NPTF(f)

10,000

SAE-HDC

Heavy Duty

1/8" NPTF(f)

10,000

SAE-4JCL

Lock N Lube

1/8" NPTF(f)

10,000

SAE-4J90C

90° Slotted

1/8" NPTF(f)

1,000

SAE-BALL

Ball-Type

1/8" NPTF(f)

1,740

Standard Button Head Couplers

Standard button head couplers are designed to grease standard button head grease fittings with head diameters listed in the chart below. Standard button head couplers include either steel or rubber inserts.
Click SAE numbers for information on each standard button head coupler.

SAE Number

Type

Thread

For Head Dia.

Pressure

Buy Now!

SBC-POP

Pull/Push

7/16"-27 NS-2(f)

5/8"

10,000

SBC-HPP

Pull-On

1/8" NPTF(f)

5/8"

10,000

SBC-PUS1

Push-On

1/8" NPTF(f)

5/8"

10,000

SBC-PUS2

Push-On

7/16"-27 NS-2(f)

5/8"

10,000

SBC-PUL1

Pull-On

7/16"-27 NS-2(f)

5/8"

10,000

SWIV-BHC

Pull-On

1/8" NPTF(f)

5/8"

3,000

SBC-KIT

Button Head Coupler Repair Kit (Compatible with all "SBC" Couplers)

Giant Button Head Couplers

Giant button head couplers are designed to grease giant button head grease fittings with head diameters listed in the chart below. Giant button head couplers include either steel or rubber inserts.
Click SAE numbers for information on each giant button head coupler.

SAE Number

Type

Thread

For Head Dia.

Pressure

Buy Now!

GBC-PUL1

Pull-On

7/16"-27 NS-2(f)

7/8"

15,000

GBC-PUL2

Pull-On

1/8" NPTF(f)

7/8"

10,000

GBC-PUL3

Pull-On

1/4" PTF(f)

7/8"

15,000

GBC-PUS1

Push-On

7/16"-27 NS-2(f)

7/8"

15,000

GBC-PUS2

Push-On

1/8" NPTF(f)

7/8"

15,000

GBC-KIT

Button Head Coupler Repair Kit (Compatible with all "GBC" Couplers)

Metric Button Head Couplers

Metric button head couplers are designed to grease metric button head fittings with head diameters listed in the chart below. Metric button head couplers have a smaller clearance than traditional couplers which provides a tighter seal around metric button head fittings. Couplers include a rubber insert and adapter.
Click SAE numbers for information on each metric button head coupler.

SAE Number

Type

Thread

For Head Dia.

Pressure

Buy Now!

MBC-PUL1

Standard Pull-On

1/8" NPTF(f)

16 mm

10,000

MBC-PUL2

Giant Pull-On

1/8" NPTF(f)

22 mm

15,000

MBC-PUL3

Standard Pull-On

M10 X 1(f)

10 mm

10,000

MBC-PUL4

Standard Pull-On

M10 X 1(f)

16 mm

10,000

MBC-PUL5

Giant Pull-On

M10 X 1(f)

22 mm

15,000

MBC-KIT1

Button Head Coupler Repair Kit (For MBC-PUL1 and MBC-PUL4)

MBC-KIT2

Button Head Coupler Repair Kit (For MBC-PUL2 and MBC-PUL5)

MBC-KIT3

Button Head Coupler Repair Kit (For MBC-PUL3)

Button Head Coupler Adapters

Button head coupler adapters adapt standard or giant button head couplers to hose assemblies, or grease gun extensions. Click SAE numbers for information on each button head coupler adapter.

SAE Number

Thread

Pressure

Buy Now!

SAE-BHA1

1/8" NPT

5,000

SAE-BHA2

3/8" NPT

5,000

Flush Fitting Couplers / Nozzles

Flush fitting couplers / flush fitting nozzles are designed to grease flush type grease fittings.
Click SAE numbers for information on each flush fitting coupler / flush fitting nozzle.

SAE Number

Type

Thread

Buy Now!

SAE-MFN

Midget

1/8" NPTF(f)

SAE-SFN

Standard

1/8" NPTF(f)

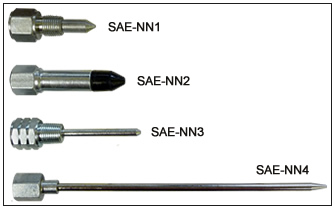

Needle Nozzles

Needle nozzles lubricate fittings in hard to reach spaces such as U-joints, CV-joints, & other hard to reach areas. Needle nozzles thread onto rigid grease gun extensions or flexible hoses. For hand operated grease guns.
Click SAE numbers for information on each needle nozzle.

SAE Number

Thread

Needle
Length

Needle Diameter

Tip Diameter

Buy Now!

SAE-NN1

1/8" NPTF(f)

19/32"

.236"

.046"

SAE-NN2

1/8" NPTF(f)

1-13/32"

-

SAE-NN3

1/8" NPTF(f)

1-1/2"

.156"

.046"

SAE-NN4

1/8" NPTF(f)

6"

.156"

.059"

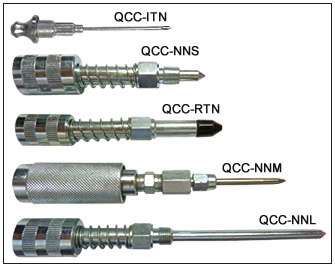

Quick Connect Nozzles

Quick connect needle nozzles are a fast and effective way to lubricate a variety of fittings when multiple greasing tools are required. No threads, no screwing or unscrewing, just snap onto any standard coupler and use. Great for U-joints, recessed fittings, and hard to reach areas. Click SAE numbers for more information.

SAE Number

Thread

Needle Length

Needle Diameter

Tip Diameter

Buy Now!

QCC-ITN

Quick Connect

1-1/2"

.039"

QCC-NNS

Quick Connect

19/32"

.187"

.046"

QCC-RTN

Quick Connect

1-1/2"

.393"

.118"

QCC-NNM

Quick Connect

1-1/2"

.156"

.059"

QCC-NNL

Quick Connect

4"

.250"

.046"

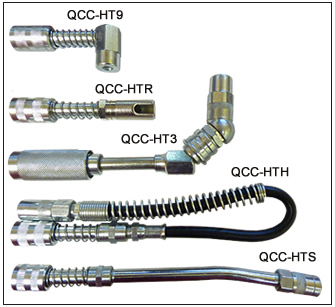

Quick Connect Couplers

Quick connect hydraulic couplers are a fast and easy way to lubricate a variety of standard grease fittings when multiple greasing tools are required. No threads, no screwing or unscrewing, just snap onto any standard coupler and use. Click SAE numbers for more information.

SAE Number

Thread

Jaws

Angle

Buy Now!

QCC-HT9

Quick Connect

3

90°

QCC-HTR

Quick Connect

-

90°

QCC-HT3

Quick Connect

3

360°

QCC-HTH

Quick Connect

4

Universal

QCC-HTS

Quick Connect

4

15°

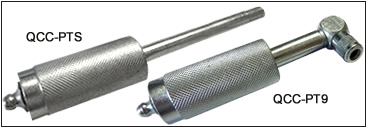

Quick Connect
Push Type

Quick connect push type couplers couplers are designed to grease recessed BALL-TYPE FITTINGS. No threads, no screwing or unscrewing, just snap on to any standard coupler and use.
Click SAE numbers for more information.

SAE Number

Thread

Angle

Buy Now!

QCC-PTS

Quick Connect

Straight

QCC-PT9

Quick Connect

90°

Quick Connect Button Head Coupler

Quick connect button head couplers are designed to quickly covert a standard coupler to a push on button head coupler. For use on 5/8" (16 mm) button head grease fittings. No threads, no screwing or unscrewing, just snap on to any standard jaw type coupler and use. Click SAE number for more information.

SAE Number

Thread

Angle

Buy Now!

QCC-BHT

Quick Connect

90°

Grease Gun Adapter Kit

Part number QCC-KIT is a quick connect grease gun adapter kit that allows you to service a variety of fittings with minimal tool change time. This kit converts any standard jaw type coupler into a quick connect coupler. Couplers are organized in a heavy duty roll up sleeve. ALL PARTS BELOW ARE INCLUDED IN KIT.

Parts In Kit

Description

Tip

QCC-ITN

1-1/2" Long Injector Needle

Injector Needle

QCC-HTH

4-Jaw Hydraulic Coupler with 12 Inch Whip Hose

Hydraulic

QCC-PTS

Straight Push Type Coupler

Push Type

QCC-PT9

90° Push Type Coupler

Push Type

QCC-NNM

1-1/2" Long Needle Nozzle

Needle Nozzle

QCC-LLS

Large Locking Sleeve to fit all couplers

Lock Sleeve

QCC-HTR

Right Angle Coupler

Hydraulic

QCC-RTN

1-1/2" Long Rubber Tip Nozzle

Rubber Tip

Pin Type Couplers

Pin type couplers provide a quick, positive, and leakproof connection with pin type fittings . Pin type couplers with wings provide a pressure point to ease installation. Click SAE numbers for more information.

SAE Number

Thread

Buy Now!

SAE-PTC1

1/8" NPTF(f) w/o wing

SAE-PTC2

1/8" NPTF(m) w/ wing

SAE-PTC3

1/8" NPTF(f) w/ wing

Swivel Couplers

Swivel couplers swivel 180-360 deg. Swivel couplers allow contact with fittings in reverse positions & permit the addition of pipe extensions. Click SAE numbers for more information.

SAE Number

Type

Thread

Buy Now!

SAE-18SC

180° Standard swivel

1/8" NPTF(f)

SAE-36SC

360° Standard swivel

1/8" NPTF(f)
